V2raya 部署

Updated on with 0 views and 0 comments

V2raya 部署(Docker)


一、 环境准备

Linux 系统

Docker 环境 :Docker 基础 - zhongts 的个人博客

镜像：通过网盘分享的文件：v2ray.tar 链接:百度网盘


二、 开始安装

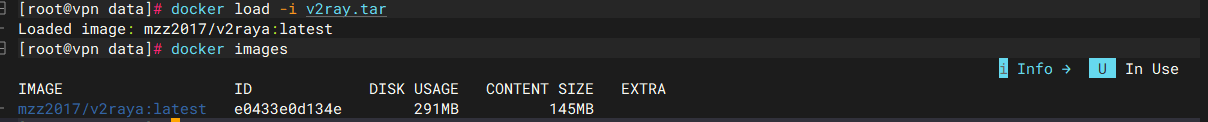

1. 加载镜像

docker load -i  v2ray.tar

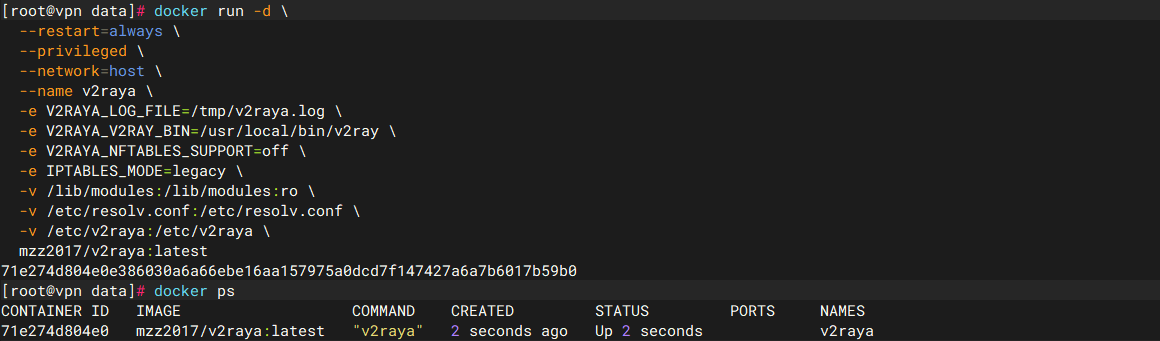

2. 运行命令

docker run -d \
  --restart=always \
  --privileged \
  --network=host \
  --name v2raya \
  -e V2RAYA_LOG_FILE=/tmp/v2raya.log \
  -e V2RAYA_V2RAY_BIN=/usr/local/bin/v2ray \
  -e V2RAYA_NFTABLES_SUPPORT=off \
  -e IPTABLES_MODE=legacy \
  -v /lib/modules:/lib/modules:ro \
  -v /etc/resolv.conf:/etc/resolv.conf \
  -v /etc/v2raya:/etc/v2raya \
  mzz2017/v2raya:latest

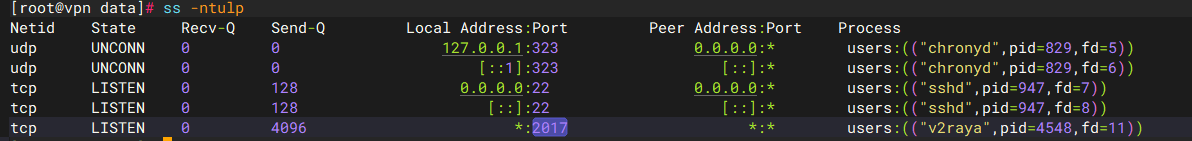

ss -ntulp # 查看端口是否开放


三、 访问管理

主机ip:2017

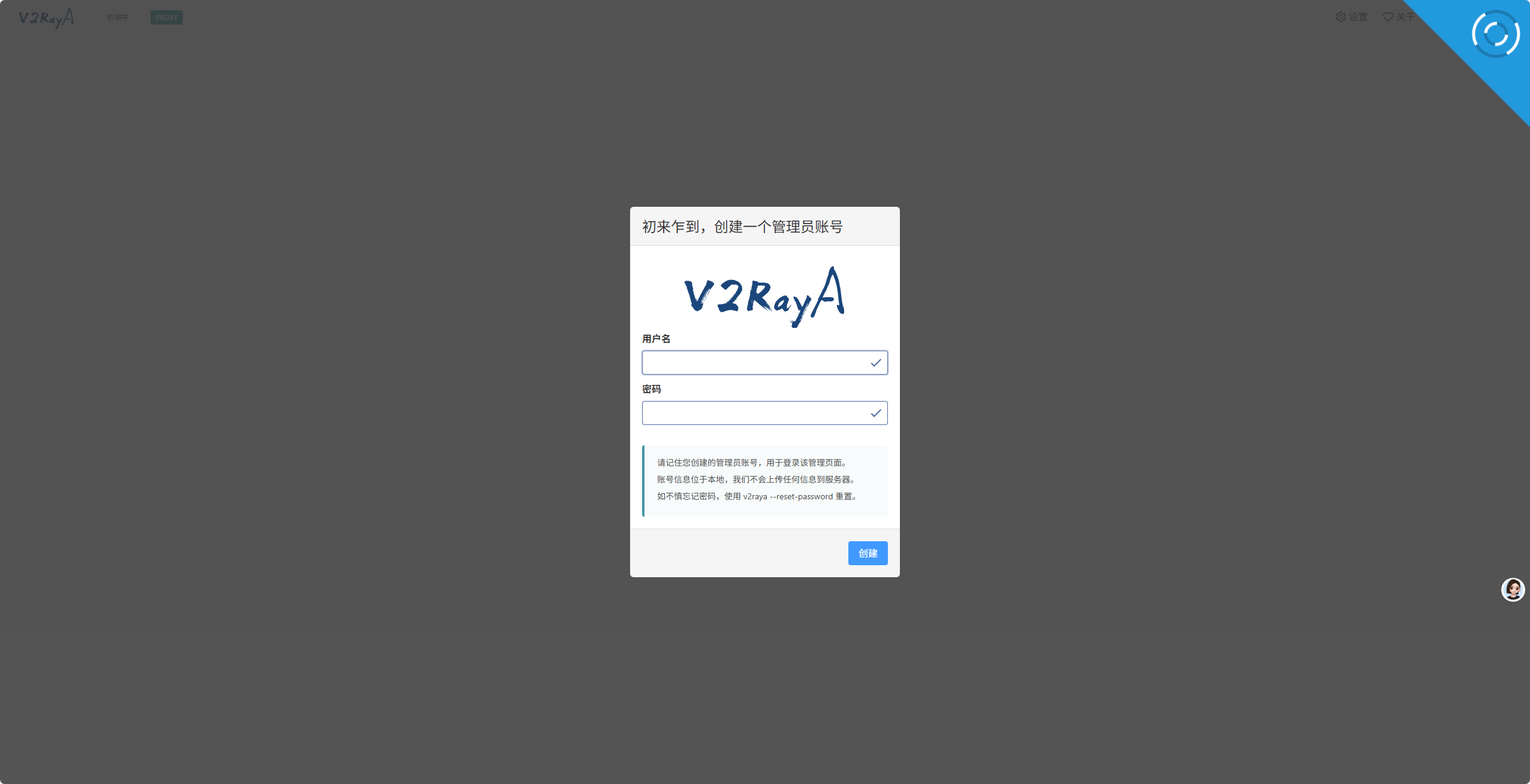

1. 创建用户

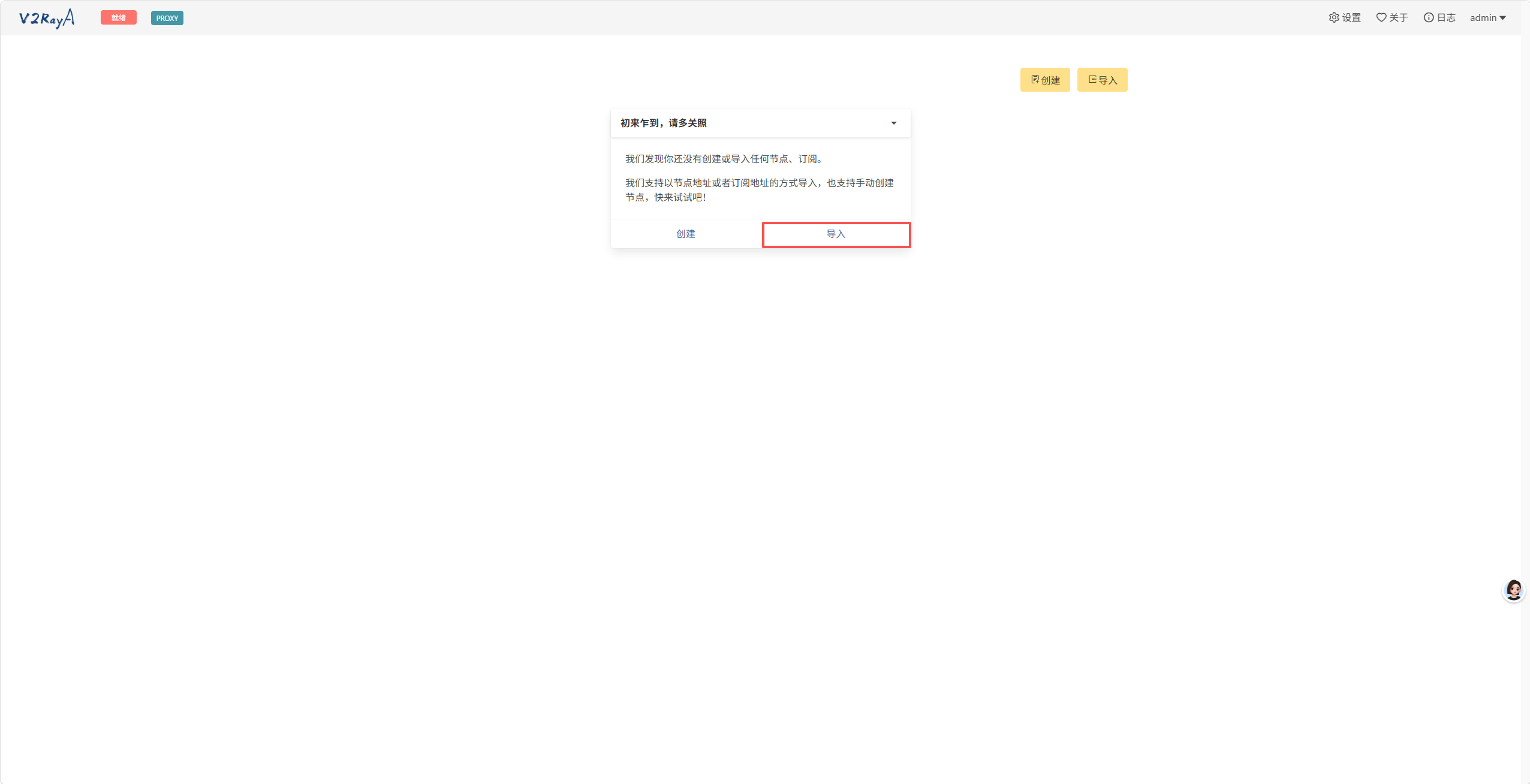

2. 导入订阅


3. 选择节点


4. 验证连接

curl -x http://127.0.0.1:20171 https://www.google.com


四、 常见问题

1. 不能访问web

Firewalld防火墙

systemctl stop firewalld
systemctl disabled firewalld

Selinux安全机制

getenforce 0
setenforce 0	# 临时关闭，重启后会开启
sed -i 's/^SELINUX=.*/SELINUX=disabled/' /etc/selinux/config # 永久关闭

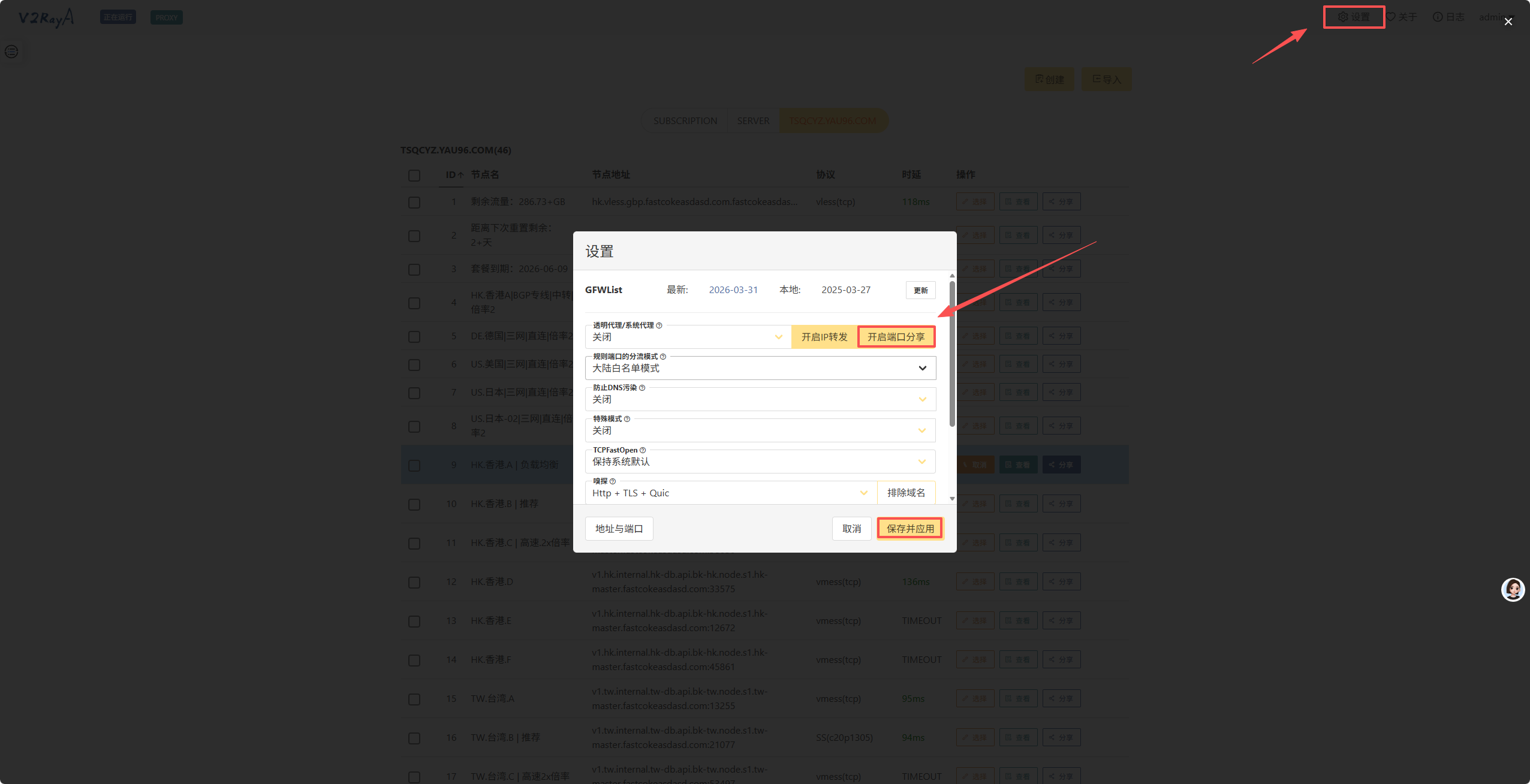

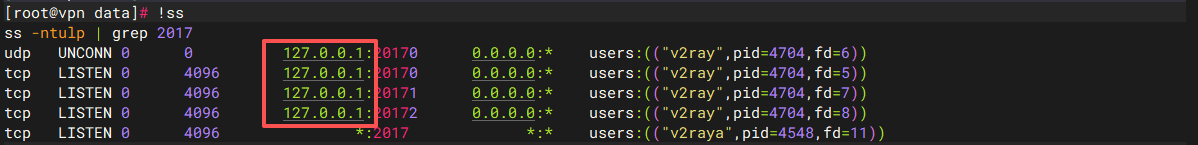

2. 代理端口异常

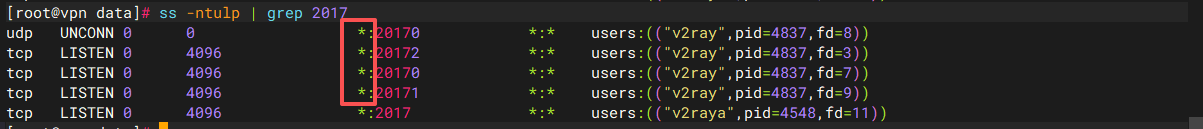

代理服务器只监听了本地127，未开放全部。导致其他服务器想要通过该代理服务器代理不通。




五、其他代理

全局 HTTP

临时配置

# 配置 HTTP/HTTPS 代理
export http_proxy=http://192.168.50.2:20171
export https_proxy=http://192.168.50.2:20171
# 可选：配置 no_proxy 排除内网地址不代理
export no_proxy=localhost,127.0.0.1,192.168.0.0/16,*.local

永久配置

vim /etc/profile
export http_proxy=http://192.168.50.2:20171
export https_proxy=http://192.168.50.2:20171
export no_proxy=localhost,127.0.0.1,192.168.0.0/16,*.local

source /etc/profile

验证

# 测试 HTTP 代理
curl -I https://www.baidu.com
# 查看当前出口IP（应该显示A服务器的公网IP）
curl ifconfig.me

包管理器

CentOS/RHEL（yum 代理）

# /etc/yum.conf

proxy=http://192.168.50.2:20171

Ubuntu/Debian（apt 代理）

# /etc/apt/apt.conf.d/99proxy

Acquire::http::Proxy "http://192.168.50.2:20171";
Acquire::https::Proxy "http://192.168.50.2:20171";
Acquire::socks::Proxy "socks5://192.168.50.2:20171";

SOCKS5

SOCKS5端口20170

export ALL_PROXY=socks5://192.168.50.2:20170
export NO_PROXY=localhost,127.0.0.1,192.168.0.0/16

验证

curl -I --socks5 192.168.50.2:20171 https://www.baidu.com

Docker

mkdir -p /etc/systemd/system/docker.service.d
vim /etc/systemd/system/docker.service.d/http-proxy.conf

[Service]
Environment="HTTP_PROXY=http://192.168.50.2:20171"
Environment="HTTPS_PROXY=http://192.168.50.2:20171"
Environment="NO_PROXY=localhost,127.0.0.1,192.168.50.0/24,10.0.0.0/8,172.16.0.0/12"

systemctl daemon-reload
systemctl restart docker


docker info
# HTTP Proxy: http://192.168.50.2:20171

Containerd

mkdir -p /etc/systemd/system/containerd.service.d
vi /etc/systemd/system/containerd.service.d/http-proxy.conf

[Service]
Environment="HTTP_PROXY=http://192.168.50.2:20171"
Environment="HTTPS_PROXY=http://192.168.50.2:20171"
Environment="NO_PROXY=localhost,127.0.0.1,192.168.50.0/24"

systemctl daemon-reload
systemctl restart containerd

systemctl show --property=Environment containerd
# 看到 HTTP_PROXY 就说明成功


ctr image pull docker.io/library/hello-world  # 拉取测试
# 或
nerdctl pull hello-world

Kubernetes

Kubernetes容器运行时为 Containerd ，设置Containerd代理即可。

V2raya 部署(二进制)

环境

v2raya_linux_x64_2.3.3

v2ray-linux-64.zip

v2raya.sh

百度网盘


v2raya.sh

#!/bin/bash
set -euo pipefail

# 进度条（你要的样式）
show_progress() {
    local BAR_WIDTH=50
    local duration=${1:-5}
    local interval=0.05
    local steps=$((duration * 20))
    for ((i=0; i<=steps; i++)); do
        p=$((i*100/steps))
        f=$((p*BAR_WIDTH/100))
        e=$((BAR_WIDTH-f))
        printf "\r["
        printf "%0.s#" $(seq 1 $f)
        printf "%0.s-" $(seq 1 $e)
        printf "] %d%%" $p
        sleep $interval
    done
    echo
}

# 菜单
clear
echo "========================"
echo "  v2rayA 管理脚本"
echo "  0 退出"
echo "  1 安装"
echo "  2 卸载"
echo "========================"
read -p "请输入选项：" opt

if [ "$opt" = "0" ]; then
    exit 0

elif [ "$opt" = "1" ]; then
    clear
    echo "开始安装..."

    # 1. 检测 unzip
    if ! command -v unzip &>/dev/null; then
        echo "错误：未找到 unzip 命令，请先安装 unzip"
        exit 1
    fi

    # 2. 检测文件
    if [ ! -f "v2ray-linux-64.zip" ]; then
        echo "错误：缺少 v2ray-linux-64.zip"
        exit 1
    fi
    if [ ! -f "v2raya_linux_x64_2.3.3" ]; then
        echo "错误：缺少 v2raya_linux_x64_2.3.3"
        exit 1
    fi

    # 3. 检测端口是否被占用
    if ss -ntulp | grep -q ":2017"; then
        echo "错误：2017 端口已被占用"
        exit 1
    fi

    # 安装任务
    install_task() {
        rm -rf ./v2ray
        unzip -q -o v2ray-linux-64.zip -d ./v2ray
        mkdir -p /usr/local/share/v2ray
        cp ./v2ray/*dat /usr/local/share/v2ray
        install -Dm755 ./v2ray/v2ray /usr/local/bin/v2ray
        install -Dm755 ./v2raya_linux_x64_2.3.3 /usr/local/bin/v2raya

cat > /etc/systemd/system/v2raya.service << EOF
[Unit]
Description=A web GUI client of Project V which supports VMess, VLESS, SS, SSR, Trojan, Tuic and Juicity protocols
Documentation=https://v2raya.org
After=network.target nss-lookup.target iptables.service ip6tables.service nftables.service
Wants=network.target

[Service]
Environment="V2RAYA_CONFIG=/usr/local/etc/v2raya"
Environment="V2RAYA_LOG_FILE=/tmp/v2raya.log"
Type=simple
User=root
LimitNPROC=500
LimitNOFILE=1000000
ExecStart=/usr/local/bin/v2raya
Restart=on-failure

[Install]
WantedBy=multi-user.target
EOF

        systemctl daemon-reload
        systemctl enable --now v2raya
        sleep 2
    }

    install_task &
    PID=$!
    show_progress 6
    wait $PID

    # ======================
    # 这里：判断 2017 端口
    # ======================
    if ss -ntulp | grep -q 2017; then
        echo "✅ 安装完成"
    else
        echo "❌ 安装失败，2017 端口未监听"
        exit 1
    fi

elif [ "$opt" = "2" ]; then
    clear
    echo "开始卸载..."

    uninstall_task() {
        systemctl stop v2raya
        systemctl disable v2raya
        rm -f /etc/systemd/system/v2raya.service
        systemctl daemon-reload

        rm -f /usr/local/bin/v2ray
        rm -f /usr/local/bin/v2raya
        rm -rf /usr/local/share/v2ray
        rm -rf /usr/local/etc/v2raya
        rm -rf ./v2ray
    }

    uninstall_task &
    PID=$!
    show_progress 4
    wait $PID

    echo "✅ 卸载完成"
else
    echo "输入错误"
    exit 1
fi

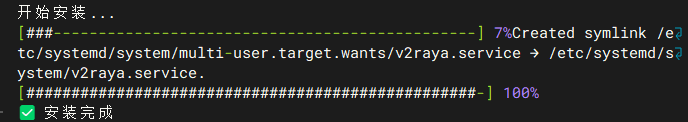

安装

./v2raya.sh



访问

ip:2017
